oosVersion 2.1

Wi-Fi Settings

Wi-Fi Setting

Choose a Connection and Authentication Method

This page covers Wi-Fi AP (access point) mode, which lets phones and computers connect to OOS. To connect OOS to another Wi-Fi network instead, use Client mode as described in Port Types.

SSID is the network name shown when a device searches for Wi-Fi. OOS supports multiple SSIDs with Pre-Shared Key (PSK), Enterprise, or Captive Portal authentication. Decide on the SSID, its VLAN (a logical group on the local network), and its authentication method before starting.

  • PSK (shared password): Everyone uses the same Wi-Fi password, without separate access management for each user. After changing it, update every client device. Clients store the password, so people with access to those devices may be able to obtain connection details.
  • Enterprise (individual authentication): Users connect with their own credentials so access can be managed centrally. This mode supports RADIUS, a server that checks user login details. Obtain the server and user details from your administrator first.
  • Captive Portal (web authentication): After connecting to Wi-Fi, users complete a login or other required interaction on a web page before gaining network access. It can use RADIUS or OOS Controller; for username and password workflows, see Portal Mode with RADIUS.

Wi-Fi feature overview and authentication modes

Wi-Fi can be enabled using the toggle switch. OOS provides wireless network connectivity for mobile devices.

Inspect Wi-Fi and Clients

The Wi-Fi status page displays relevant network metrics, including transmitted traffic, received traffic, SSID, MAC Address, Bandwidth, Channel, and connected client information.

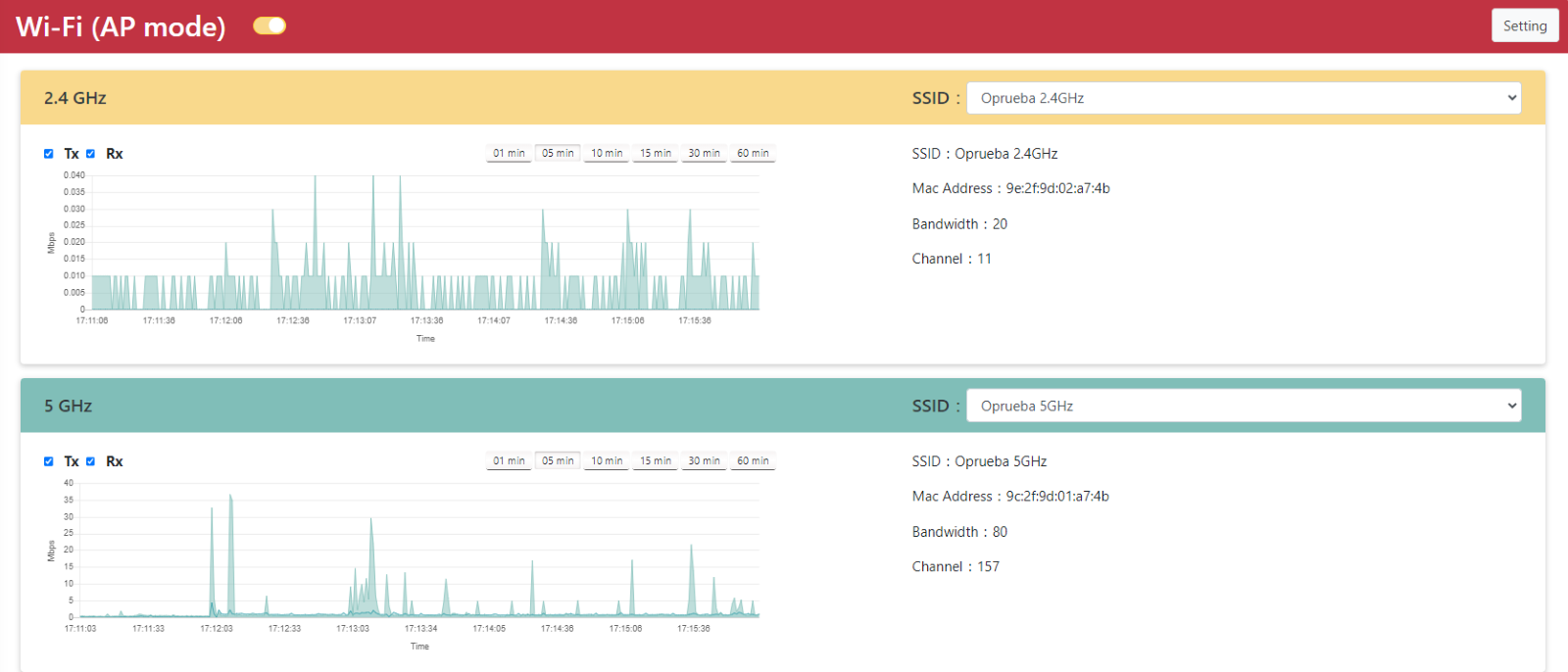

Wi-Fi status and online client list

Wi-Fi client devices connect to SSIDs. Active clients are listed in the Client table.

!NOTE For certain devices, such as Apple iPhones, the device name may be displayed as "Unknown" due to privacy and security protections.

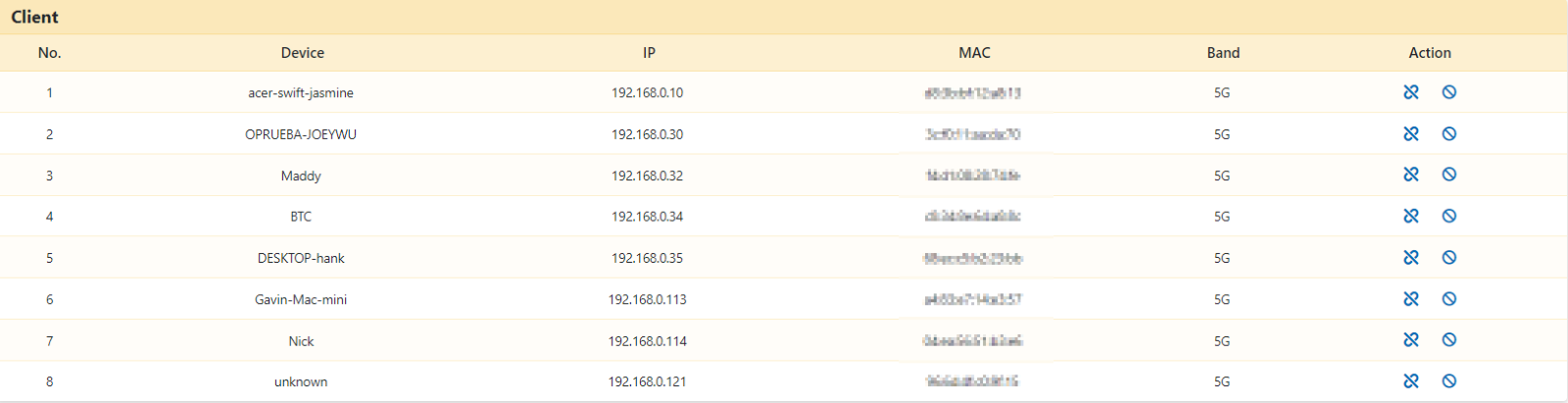

Online client details table

In the Action column:

Unlink button

Click the Unlink button to disconnect the selected device.

Block button

Click Block to add the selected device to the Blacklist. Check the client details first to avoid blocking the device you use to manage OOS. Unlink disconnects a device; Block also creates a blacklist entry.

Navigate to Security > Access Control > Blacklist. Blocked devices are listed in the Blacklist table. Click the "unlock" icon to remove a device from the blacklist.

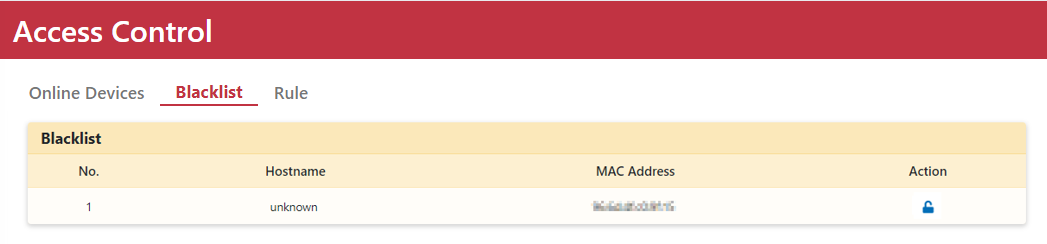

Blacklist table and unlock action

Disable Wi-Fi toggle switch

Use the toggle switch to disable Wi-Fi. Check for connections that must remain available first. If you manage OOS over Wi-Fi, turning it off also interrupts your management connection.

Wi-Fi Settings Reference

ParameterDescription
SSIDThe network name shown when searching for Wi-Fi. Default 2.4 GHz SSID is OOS_2.4GHz; default 5 GHz SSID is OOS_5GHz.
AuthenticationSupports PSK, Enterprise, and Portal modes. Configure under Wi-Fi > Settings > Authentication by adding an entry with the desired mode and password or selecting an AAA server. Default is PSK mode with password qwertyui.
BandwidthThe width of the wireless channel; the example below uses 80MHz. This is not a measured Internet speed.
ChannelSelect Auto to allow the system to dynamically choose the optimal channel with minimal interference.
Tx PowerTransmit power percentage to adjust signal range and strength.

Configuring 5 GHz Multiple SSIDs

80MHz, Channel 149, and 76% are settings from the illustrated example. Confirm that the Wi-Fi module supports 5 GHz and use bandwidth, channel, and power options available in your environment. VID is the VLAN ID assigned to this SSID; choose the planned VLAN. An AAA server centrally handles login authentication.

  1. Navigate to Networking > Wi-Fi.
  2. Click the Setting button to open the Setting dialog box.
  3. Select the 5GHz radio option.
  4. Go to the Authentication tab and click the Add button.

Wi-Fi authentication settings dialog

  1. Enter a Name, select the Mode and Version, and specify the PSK password.
  2. Switch to the SSID tab.
  3. Enter the SSID name and select the corresponding Authentication profile.
  4. Select the VID from the drop-down menu.
  5. Set Bandwidth to 80MHz.
  6. Set Channel to Channel 149.
  7. Set Tx Power to 76%.
  8. Click Apply.
  9. On a mobile device, select the new SSID and connect with the matching authentication details. Check that the device appears in OOS Client table, then test the network service you need from that device.

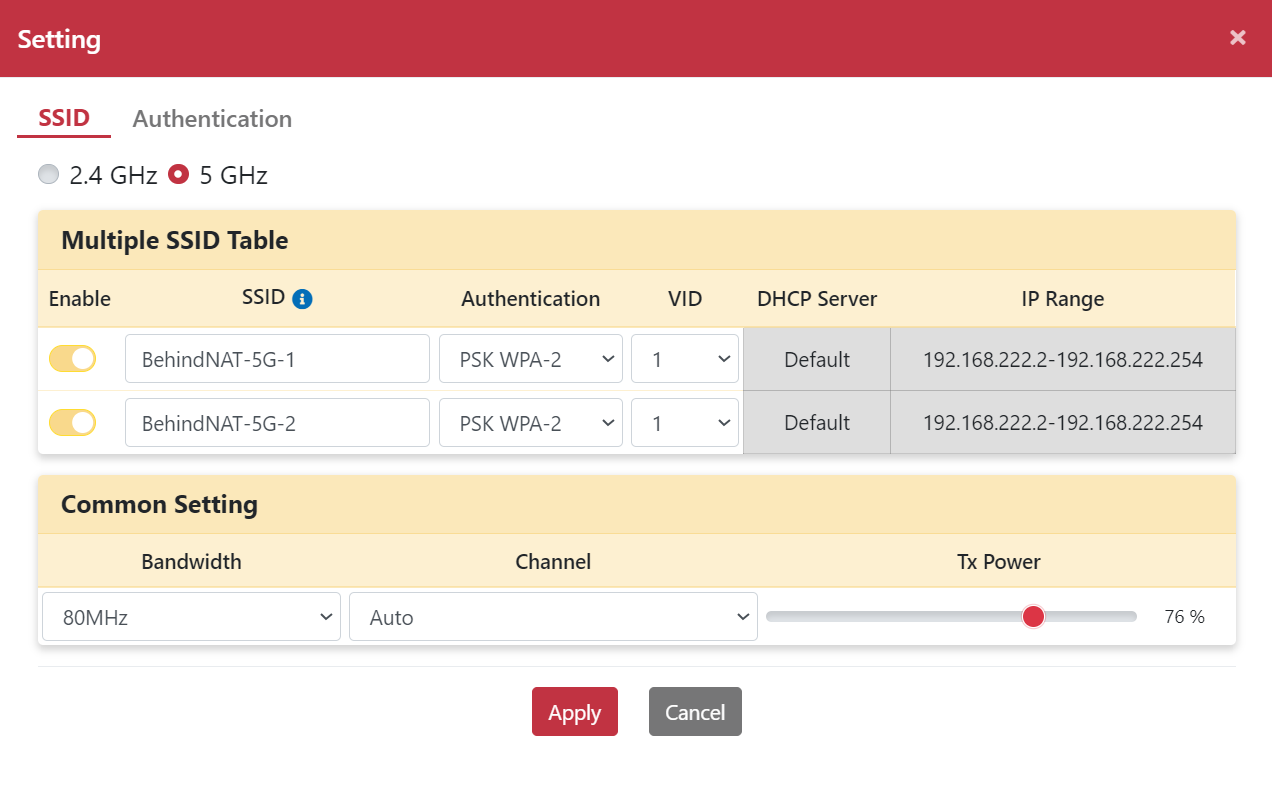

5GHz multiple SSID configuration result

!NOTE Supported frequencies vary according to the hardware specifications of the Wi-Fi module.
