NAT
NAT
NAT (Network Address Translation) lets internal devices communicate through an external interface. OOS creates related NAT rules when a physical port is assigned as WAN. Use Networking > WAN > NAT when a source subnet needs a specified exit interface.
!WARNING Deleting a NAT rule associated with a WAN interface changes that port back to LAN and removes the related NAT rules. This may interrupt external or management connections. Do not treat deletion as list cleanup with no network impact.
Add a NAT Rule
Confirm the source subnet and exit interface first. Source Subnet is the range of internal addresses using this rule. 192.168.0.0/24 is an example subnet; /24 describes the subnet range, not one device address.
- Go to Networking > WAN > NAT and click Add.
- Enter the Source Subnet, such as
192.168.0.0/24. Use the actual source subnet. - Enter a Description to identify the purpose later.
- Select the exit Interface, such as Mobile Network, using the WAN you intend to use.
- Click Apply.

Check the saved rule's source subnet and interface, then test the required external service from a device on that subnet. If it cannot connect, check the exit IP and connection status in Multiple WAN first.
Cheetah Mode

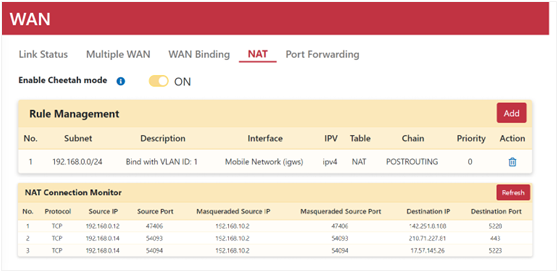

Cheetah mode is enabled by default to improve upload and download throughput, the amount of data transferred in a given time. If throughput decreases with it enabled in your environment, disable the option and compare the transfer results using the same method.
