Multiple WAN

Multiple WAN

WAN is the connection from OOS to an external network. Open Networking > WAN > Multiple WAN to check which links have an IP address and carry traffic, or to change a WAN connection method.

Inspect the Current Status First

The page shows WAN Interface, IP Address, Status, Receiving traffic, Sending traffic, and In Used Mode. Identify the intended interface before editing so you do not change the connection used to manage OOS by mistake.

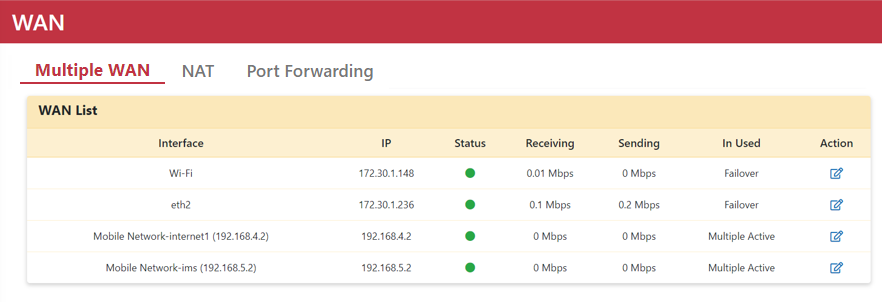

Multiple WAN interface status list

In Used ModeDescription
BindingOne WAN is bound to a VLAN, a logical group on the local network.
FailoverTwo or more WANs are bound. The primary carries traffic, and backups take over when it has a problem. VLAN 1 can also use this mode.
Multiple ActiveTwo or more WANs are active at the same time and share traffic; VLAN 1 is shown here as an example.

WAN connections can use DHCP (automatic IP assignment), Static IP (a manually assigned IP), or PPPoE (a connection using the account and password supplied by the provider). This example uses DHCP. Check with your network administrator if you are unsure which method to use.

Configure DHCP and the Connection Test Target

Ping Target is the IP address OOS uses to test a connection. The default is 8.8.8.8. For a private network without direct Internet access, use a local gateway or designated device IP supplied by your network administrator.

!WARNING Changing port types or WAN settings may interrupt that interface's connection. Check the management path first. If the interface is already a WAN, start at stage 2 below.

1. Assign the Interface as WAN

  1. Go to Networking > Forwarding > Port Type.
  2. Select the target interface in the LAN list and click < to move it to WAN.
  3. Click Apply. DHCP mode can obtain an IP automatically only if the connected network provides DHCP service.

2. Edit the WAN DHCP Settings

  1. Go to Networking > WAN > Multiple WAN.
  2. Click Edit for the target interface to open its WAN settings.
  3. Set Mode to DHCP.
  4. Enter the Ping Target Address and click Apply.

Edit WAN settings and Ping Target

Return to Multiple WAN and check the interface, IP Address, and Status. If an IP is present but the detected status is unexpected, check whether the Ping Target suits this network. To assign a link to a VLAN, continue with WAN Binding.
